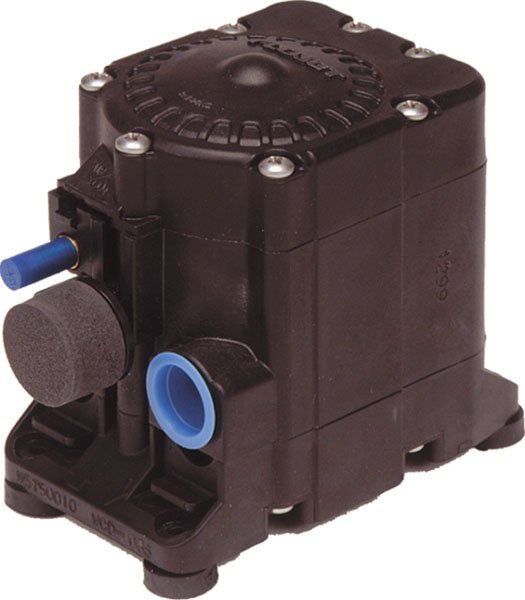

Flojet G57C Series Air Driven Pump
- 6.9 Bar max pressure
- 18.9 Lpm max flow
- Kalrez diaphragm
- 3/8" hose barb fluid ports
- 1/4" hose barb air inlet
- Polypropylene pump housing
- 6.9 Bar max air pressure
- Operates with air or CO2
- 0.21 - 0.61m3/min air consumption
- Automatic on demand supply - Stall-proof design
- Clog-free valves capable of passing solids up to ø3.2mm
Ideal for applications, including chemical feed/transfer and dispensing, herbicide and water transfer, solvent applications, parts washers, ink transfer, car wash systems, brake fluid and oil dispensing/transfer duties, the G57 Series pumps are engineered for ultimate performance and reliability. See User Manual for list of compatible seals for each fluid or application.
The G57 Series air operated diaphragm pump combines innovative features and relentless testing to offer a pump that has a long, trouble-free service life. The uniquely designed shuttle valve and check valves, together with high-performance capabilities, have created the ultimate in compact air operated diaphragm pump technology.
The G57 Series can supply up to 18.9 Lpm. The high air inlet pressure capability makes it the ultimate pump that delivers fluid at the needed flow and pressure and is engineered to operate quietly with installed exhaust muffler.
