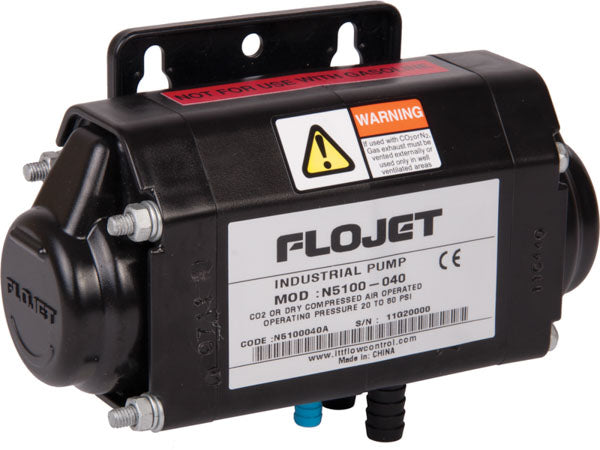

Flojet 5100 Series Air Driven Pump
- 5.5 Bar max pressure
- 9.5 Lpm max flow
- Viton diaphragm & check valve
- 3/8" hose barb fluid ports
- 1/4" hose barb air inlet
- Acetal coploymer pump housing
- 5.5 Bar max air pressure
- Operates with air or CO2
- 0.013 - 0.022m3/min air consumption
- Automatic on demand supply
FLOJET Industrial N5100 Series Pumps are designed for light general commercial and industrial applications. These pumps are constructed from a selection of materials for handling a broad range of chemicals.
Flojet air-operated diaphragm pumps offer excellent self-priming capability. Pumps can be located above the supply tank. A suctionside foot valve is recommended for best operation. Liquid pressure is regulated by supply air pressure. No bypass or pressure relief plumbing is necessary. Choice of EP/PP blend, Buna, or FKM elastomers provide a wide range of chemical compatibility. Quick disconnect liquid and gas port fittings provide easy installation.
