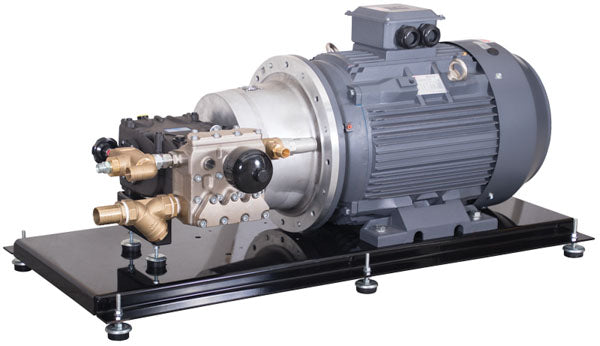

Pratissoli KF40 Series MPU with Valves & Filter
- 110 Bar max pressure*
- 170 Lpm max flow*
- 415V, 45kW, 1000 Rpm, IE3 motor*
- Pratissoli KF40 pump
- Pratissoli R2 pressure regulator
- Pratissoli S723 pre-set safety valve
- Pre-set 0.7L pulsation dampener
- Brass inlet filter
- Nickel plated st.steel pump manifold
- Flexible spider coupling
- Mounted on heavy duty skid
- 40°C max fluid temperature
The Pratissoli KF40 pump is rated to run at 900 rpm to achieve the rated flow of 170 Lpm at 110 Bar maximum pressure. The electric motor on this M500-1444 unit must be controlled with a Variable Frequency Drive to limit the motor speed to 900 rpm.
The Pratissoli KF40 pump can be run at 1000 rpm to achieve a rated flow of 188 Lpm at up to 100 Bar maximum pressure; the required power is 48.8 Hp (35.9 kW). To run at this speed the pump must be fed by a booster pump capable of delivering twice the plunger pump rated flow (~376 Lpm) at between 2 to 3 Bar. In this instance, the electric motor can run at it's full rated speed and can be controlled by a Star-Delta starter, a Soft-Start starter, or a Variable Speed Drive.
Please call our sales office for installation advice.
